SLA Kit - Sinus Lateral Approach Kit

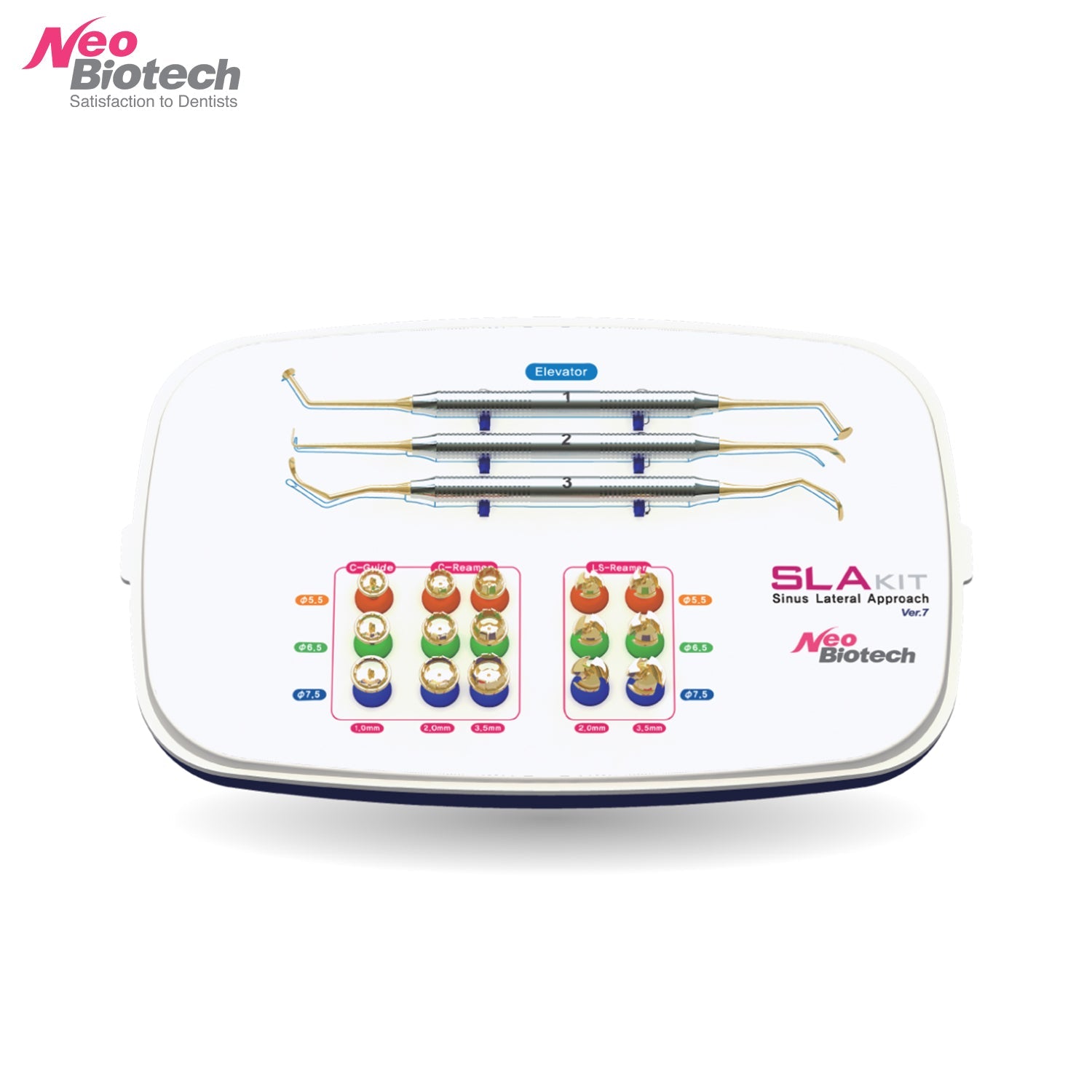

SLA Kit
The Sins Lateral Approach Kit is a sinus lift surgical instrument used to elevate the sinus membrane without tearing it by drilling through the lateral wall.

Features

Minimally Invasive

• Minimal flap size (Ø5.5 ~ Ø7.5)
• Instruments provide a method for opening the lateral wall near the crest.

Fast

• Reamers are designed for use with a conventional surgical motor handpiece at 2,000 RPM.
• The conical body of the LS reamer is designed to control the drilling depth up to 3.5 mm without using drill stoppers.

Comprehensive

• The kit provides a sinus elevator for lateral window sinus lift procedures.

Components

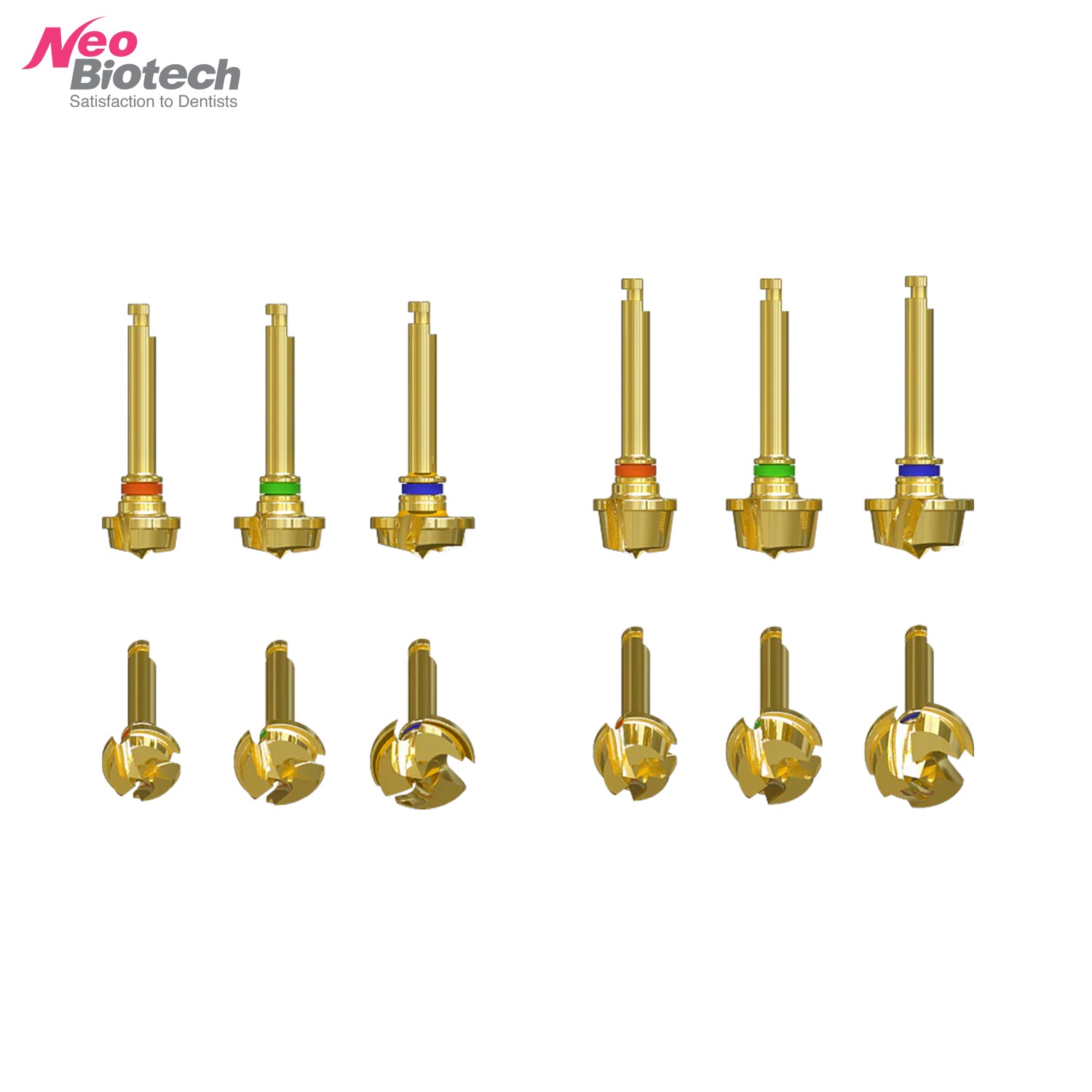

LS-Reamer

Product Name | Diameter | Length (mm):

• LS520: Ø5.5 - 2.0 mm
• LS620: Ø6.5 - 2.0 mm
• LS720: Ø7.5 - 2.0 mm
• LS535: Ø5.5 - 3.5 mm
• LS635: Ø6.5 - 3.5 mm
• LS735: Ø7.5 - 3.5 mm

Speed

• 1:1 contra-angle - 5,000 RPM
• 1:20 contra-angle - 2,000 RPM

C-Reamer & C-Guide Reamer

Product Name | Diameter | Length (mm):

• SCG510: Ø5.5 - 1.0 mm
• SCG610: Ø6.5 - 1.0 mm
• SCG710: Ø7.5 - 1.0 mm

Product Name | Diameter | Length (mm):

• LC520: Ø5.5 - 2.0 mm
• LC620: Ø6.5 - 2.0 mm
• LC720: Ø7.5 - 2.0 mm
• LC535: Ø5.5 - 3.5 mm
• LC635: Ø6.5 - 3.5 mm
• LC735: Ø7.5 - 3.5 mm

Speed

• 1:1 contra-angle - 5,000 RPM
• 1:20 contra-angle - 2,000 RPM

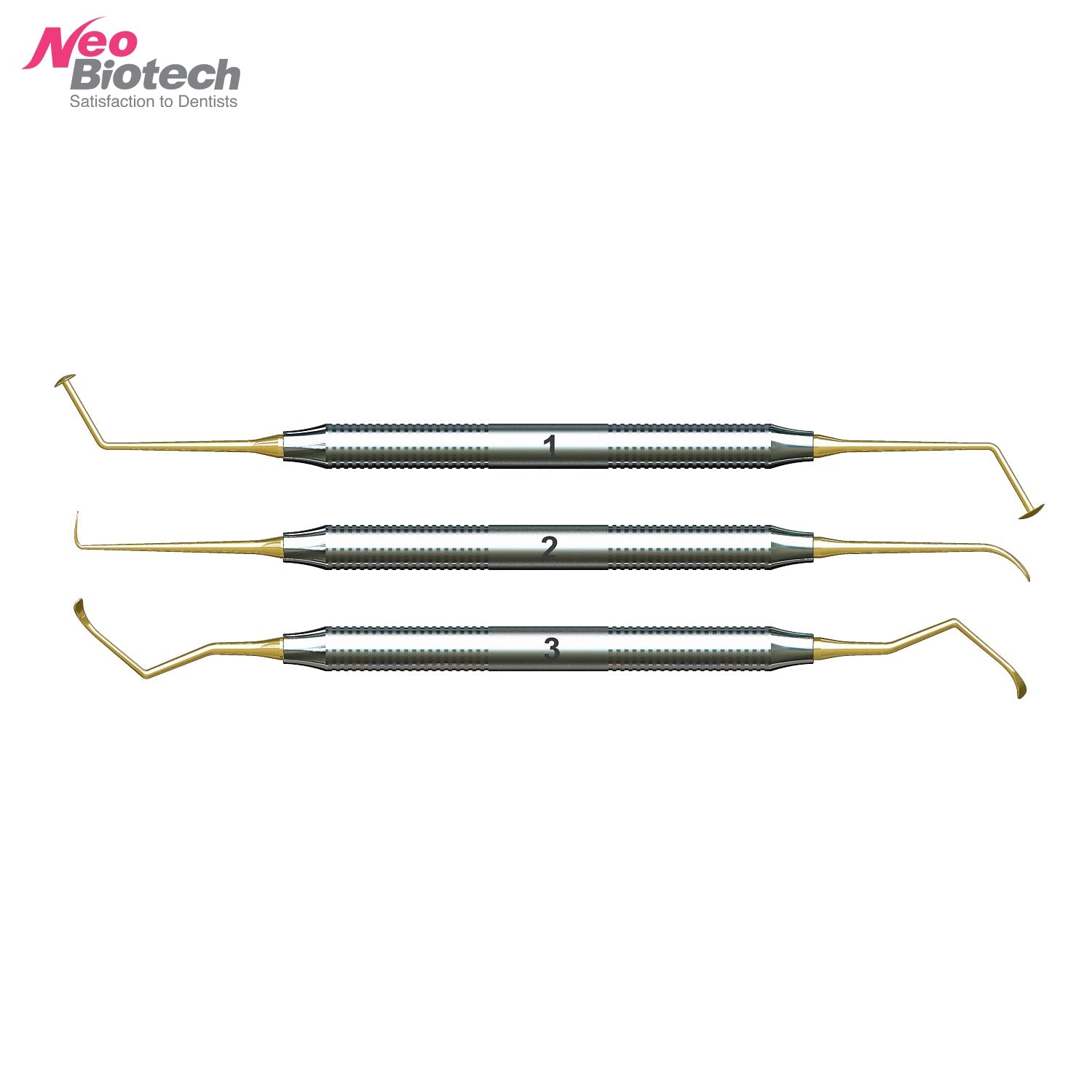

Sinus Elevator

Product Name:

• SLE05
• SLE02
• SLE03
